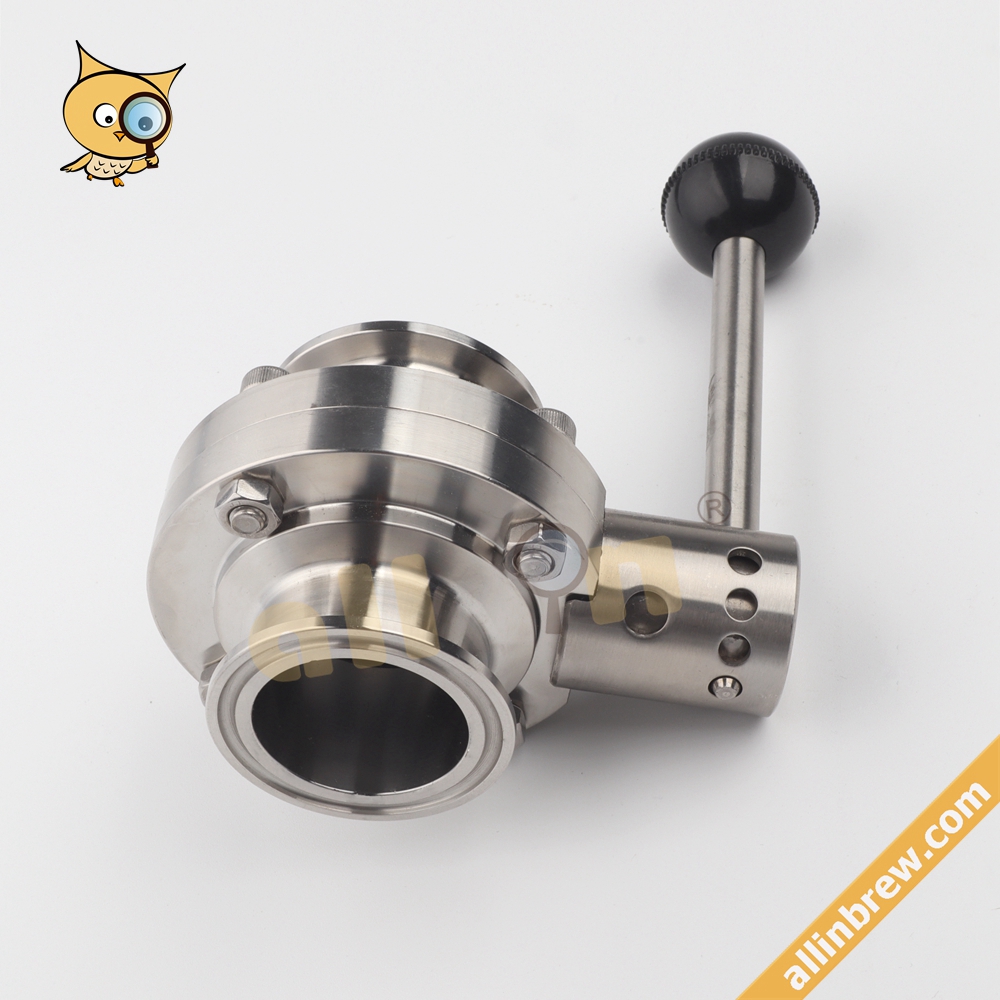

1.5” Tri Clamp 304 Stainless Steel Pull Handle Butterfly Valve
- Material: Food Grade AISI 304 / SUS 304 / 1.4301
- Max Pressure: 1MPa
- Connection: 50.5mm
- Stop Position: 4
- Working Temperature: -10°C to 120°C (EPDM)
- Surface Finish: Brush (Mirror Polish if Necessary)

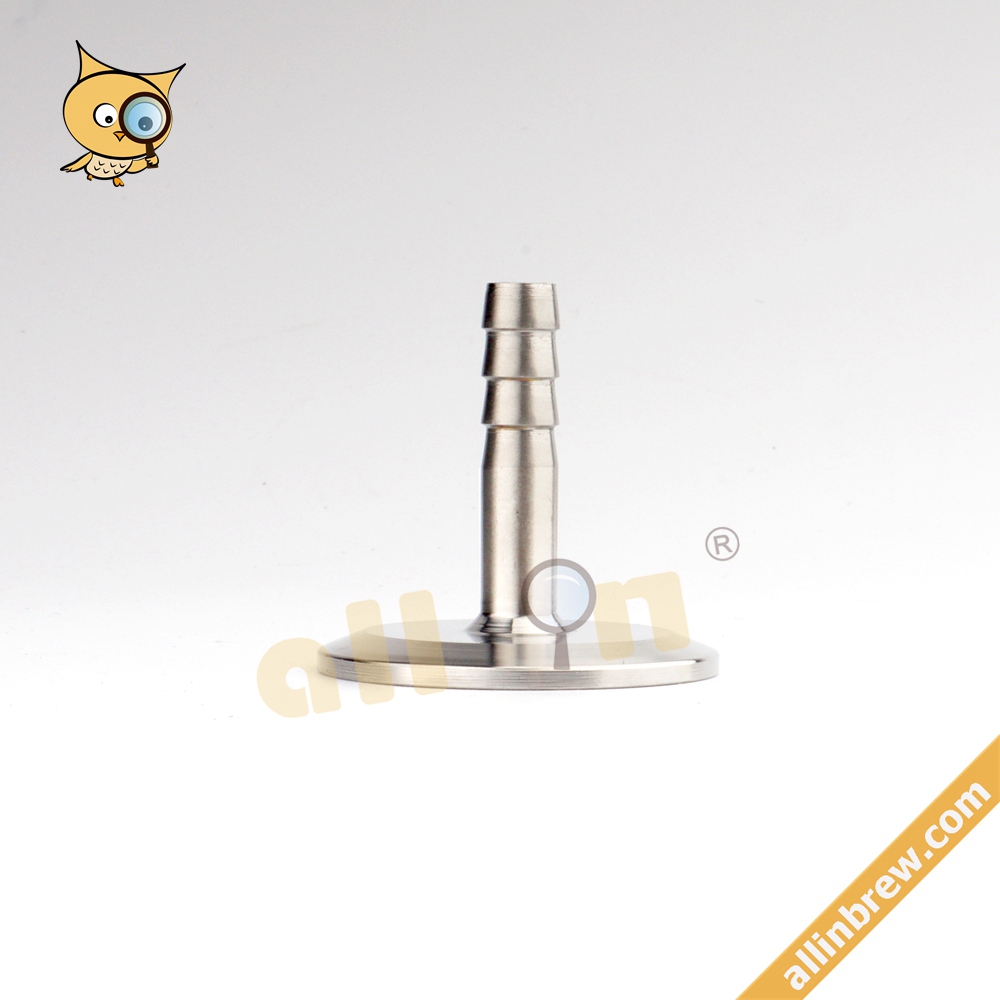

3/8” Barbed to Tri-Clamp Clover Adaptor
- Material: Food Grade 304 Stainless Steel
- Tri-Clover Diameter: 50.5mm
- Barbed Connection: 3/8”
- Surface Finish: Polish
304 Stainless Steel Magnetic Drive Pump MP - 15RM with 1/2”NPT Thread
- Model: Magnetic Pump 15RM - SS 304
- Body Material: Food Grade AISI 304 / SUS 304 / 1.4301
- Pump Shaft / Sealing Material: Alumina Ceramics / FKM (EPDM Available)
- In & Out Connection Thread: 1/2”NPT (Other Size Available)
- Max Standard Working Temperature: 100°C
- Max Temperature: 120°C (Short Period) / 140°C (Destroy)
- Max Capacity: 16 / 19L per min (@ 50/ 60Hz)
- Max Head: 2.4 / 3.4m (@ 50/ 60Hz)
- Standard Capacity: 8 / 12L per min (@ 50/ 60Hz)
- Standard Head: 1.5m (@ 50/ 60Hz)
- Liquid Specific Gravity:<1.3
High-Temp Resistant PP Magnetic Drive Pump MP - 15RM with 1/2”NPT Thread
- Model: Magnetic Pump 15RM - SS 304
- Body Material: Food Grade AISI 304 / SUS 304 / 1.4301
- Pump Shaft / Sealing Material: Alumina Ceramics / FKM (EPDM Available)
- In & Out Connection Thread: 1/2”NPT (Other Size Available)
- Max Standard Working Temperature: 100°C
- Max Temperature: 120°C (Short Period) / 140°C (Destroy)
- Max Capacity: 16 / 19L per min (@ 50/ 60Hz)
- Max Head: 2.4 / 3.4m (@ 50/ 60Hz)
- Standard Capacity: 8 / 12L per min (@ 50/ 60Hz)
- Standard Head: 1.5m (@ 50/ 60Hz)
- Liquid Specific Gravity:<1.3

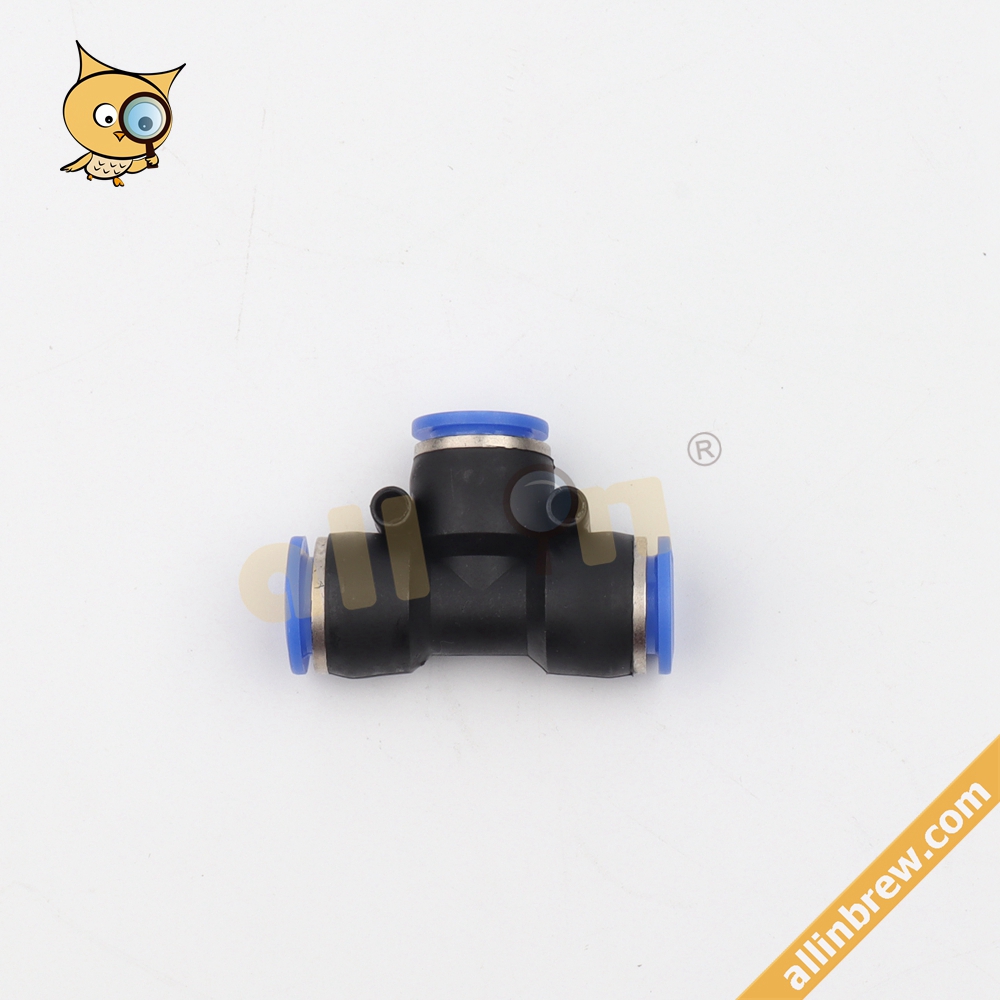

Manifold 3 Way Tee Joint Fitting with 12mm Push In Connection
- Model: PE-12
- Body Material: PBT
- Connection Material: Brass
- Fluid: Air
- Barbed: 12mm
- Ambient temperature: 0 - 60°C
- Pressure Range: 0 - 0.9Mpa
- Max Working Press: 1.32Mpa

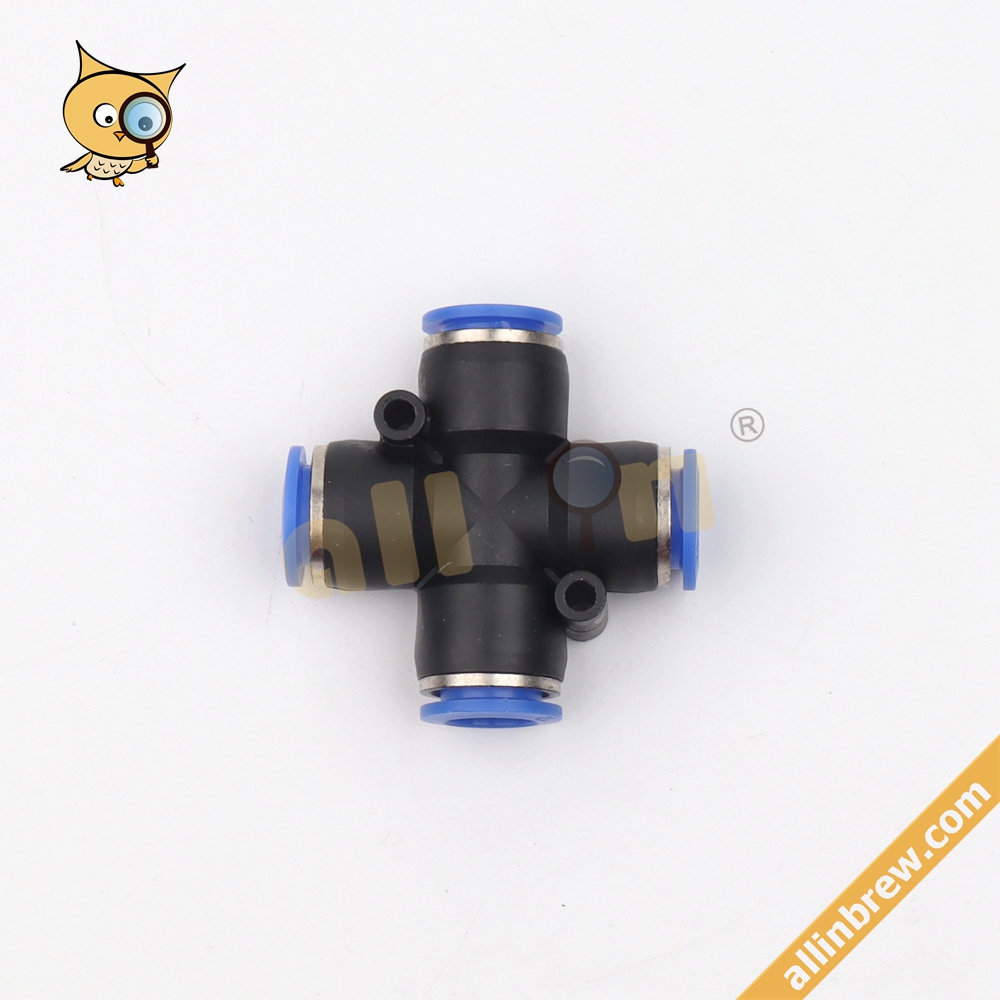

Manifold 4 Way Cross Joint Fitting with 12mm Push In Connection
- Model: PZA-12
- Body Material: PBT
- Connection Material: Brass
- Fluid: Air
- Barbed: 12mm
- Ambient temperature: 0 - 60°C
- Pressure Range: 0 - 0.9Mpa
- Max Working Press: 1.32Mpa

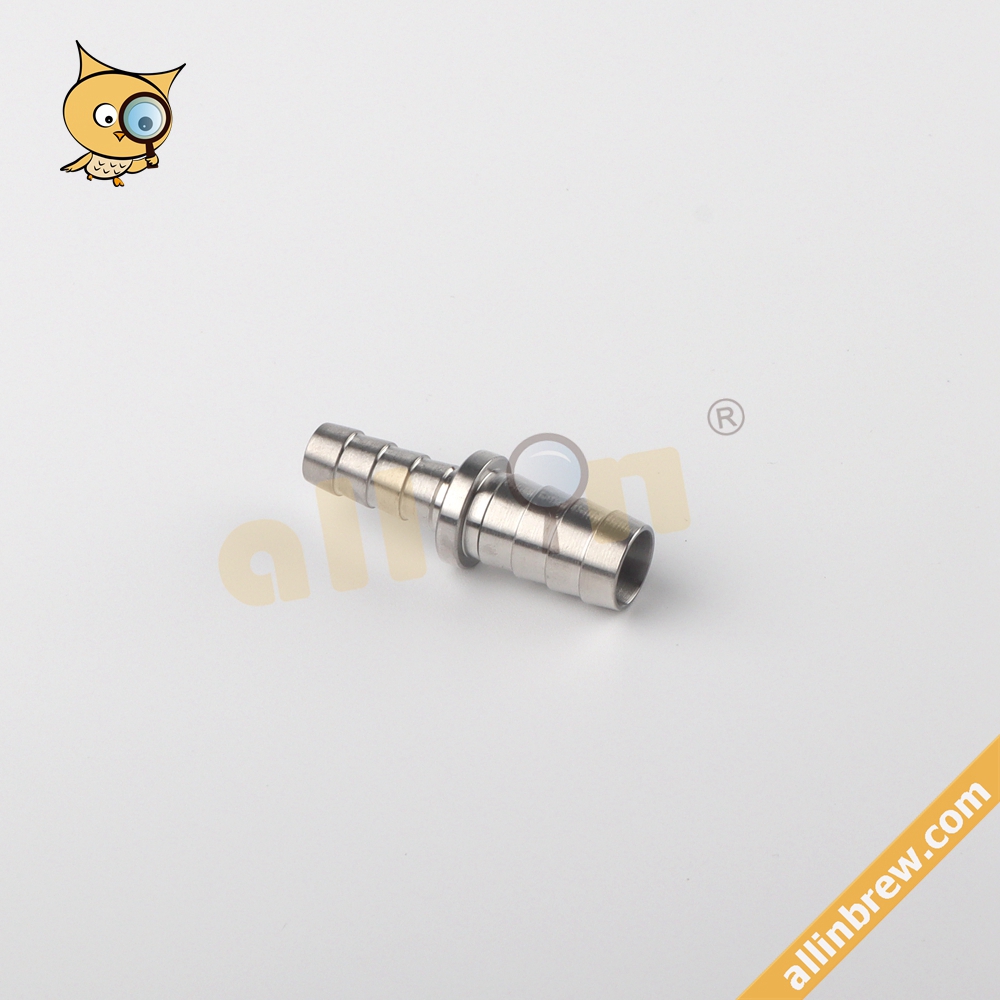

Sanitary 7/16” 11.5mm to 3/8” 8mm Barbed Reducer
- Material: Food Grade 304 Stainless Steel
- Bigger Barbed: 7/16” (11.5mm)
- Smaller Barbed: 3/8” (8mm)
- Surface Finish: Polish

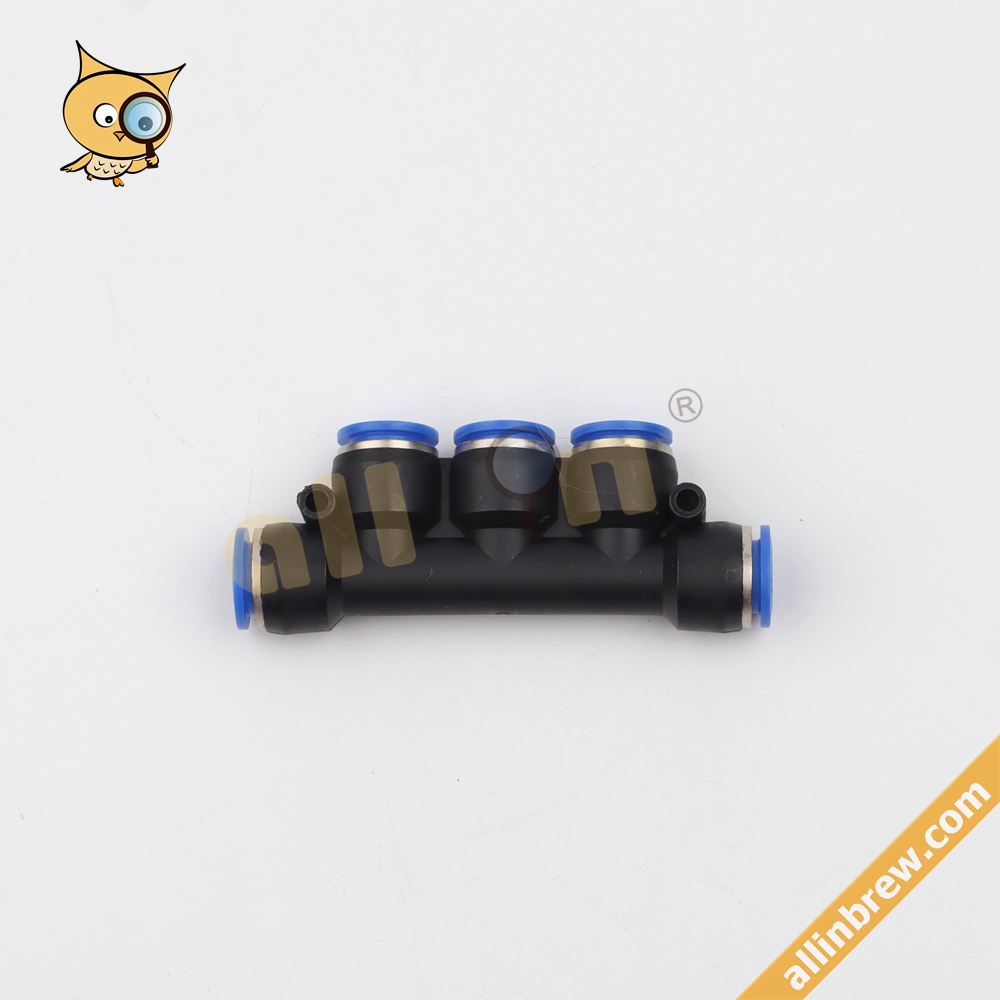

Manifold 5 Way Triple Branch Fitting with 12mm Push In Connection
- Model: PK-12
- Body Material: PBT
- Connection Material: Brass
- Fluid: Air
- Barbed: 12mm
- Ambient temperature: 0 - 60°C
- Pressure Range: 0 - 0.9Mpa
- Max Working Press: 1.32Mpa
Sanitary 3/8” 9.5mm Y Type Barbed Pipe Line
- Material: Food Grade 304 Stainless Steel
- Barbed: 3/8” (9.5mm)
- Surface Finish: Polish
- Connection Number: 3

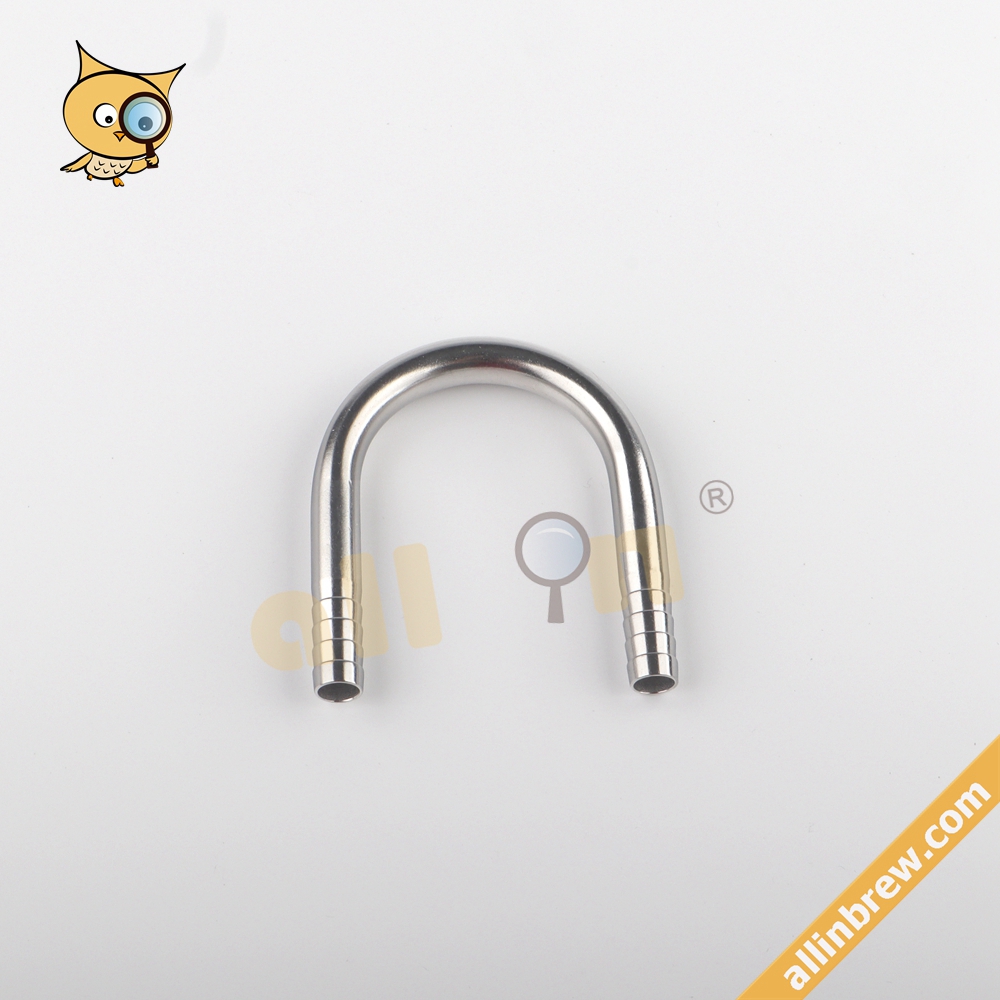

Sanitary 3/8” 9.5mm U Type Barbed Pipe Line
- Material: Food Grade 304 Stainless Steel
- Barbed: 3/8” (9.5mm)
- Surface Finish: Polish
- Connection Number: 2

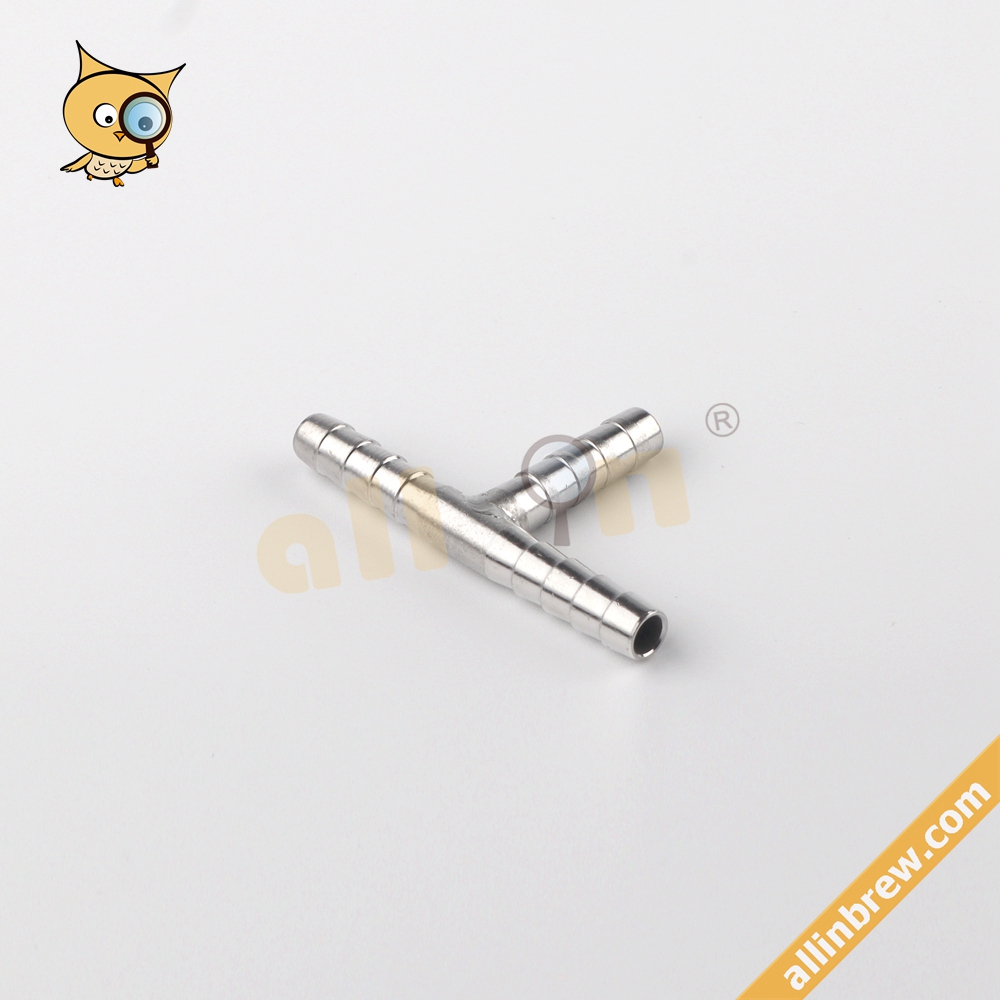

Sanitary 5/16” 8mm T Type Barbed Pipe Line
- Material: Food Grade 304 Stainless Steel
- Barbed: 5/16” (8mm)
- Surface Finish: Polish
- Connection Number: 3

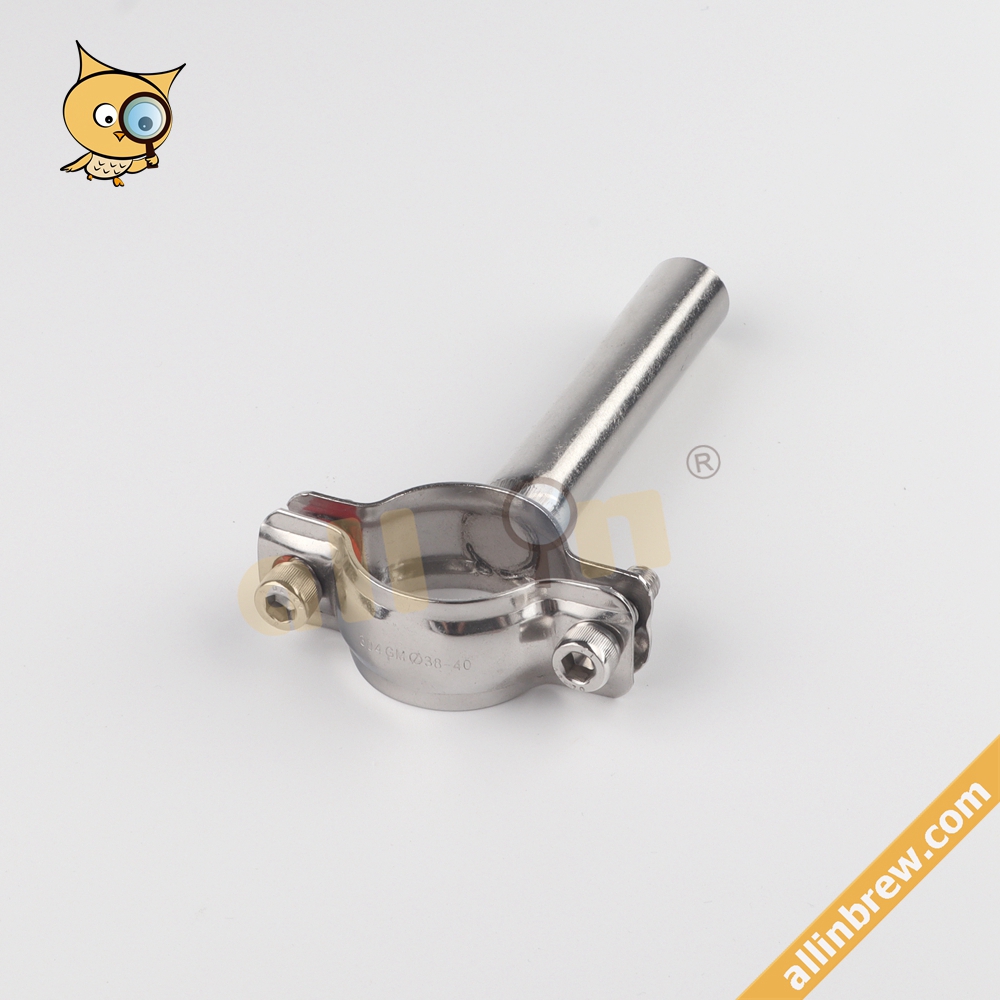

- Material: Food Grade 304 Stainless Steel
- Tube Fitting Diameter: 38 - 40mm
- Surface Finish: Mirror Polish
- Length of Hanger: Depending on Demand
8 - 12mm American Worm Type Clamp
- Material: 304 Stainless Steel
- Hose Outside Diameter Fitting Range: 8 - 12mm
Brix Refractometer RHB - 90ATC
- Model: RHB - 90ATC
- Material: Aluminum Alloy and Rubber
- Brix Measurement Range: 0 - 90%
- Brix Tolerance: ±0.5%
- Brix Resolution: 0.5%
- Automatic Temperature Compensation (ATC): 10°C~30°C (50°F~86°F)

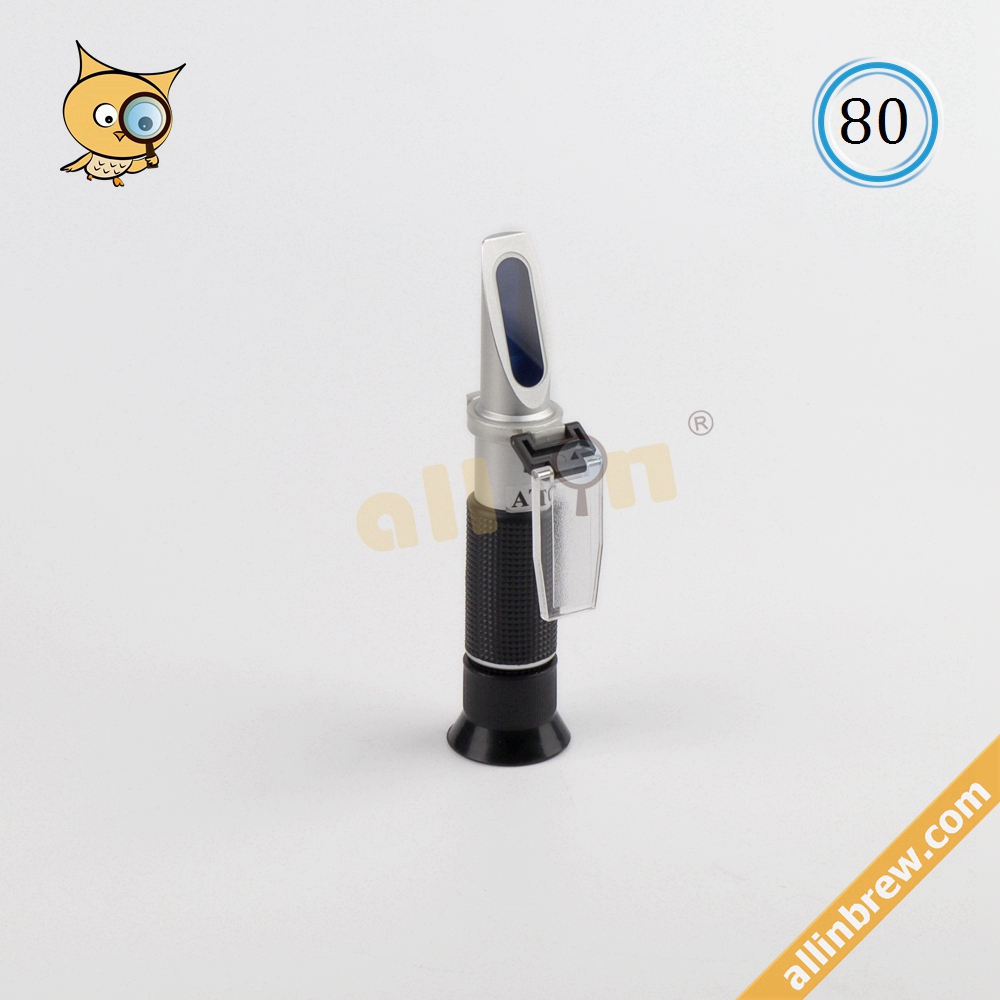

Brix Refractometer RHB - 80ATC
- Model: RHB - 80ATC
- Material: Aluminum Alloy and Rubber
- Brix Measurement Range: 0 - 80%
- Brix Tolerance: ±0.5%
- Brix Resolution: 0.5%
- Automatic Temperature Compensation (ATC): 10°C~30°C (50°F~86°F)
Brix Refractometer RHB - 50ATC
- Model: RHB - 50ATC
- Material: Aluminum Alloy and Rubber
- Brix Measurement Range: 0 - 50%
- Brix Tolerance: ±0.5%
- Brix Resolution: 0.5%
- Automatic Temperature Compensation (ATC): 10°C~30°C (50°F~86°F)
