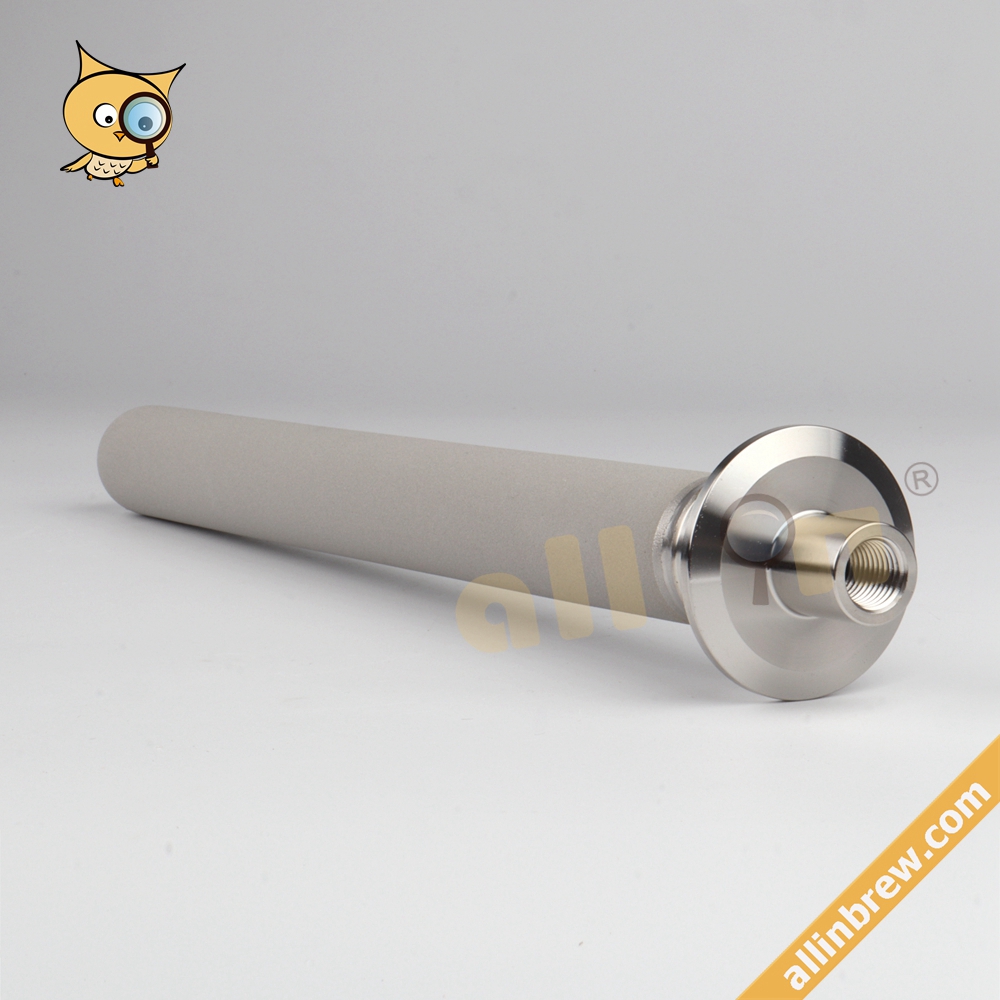

12” 316L Stainless Steel Diffusion Aeration Stone Tri-Clamp - 2 Micron
- Material: AISI 316L / SUS 316L
- Diameter of 304 Stainless Steel Part: 30mm
- Mesh Quantity per Square Inch: 7500
- Diameter of Mesh: 2 Micron
- Tri-Clamp Connection: 50.5mm
- Length: 12” (305mm)

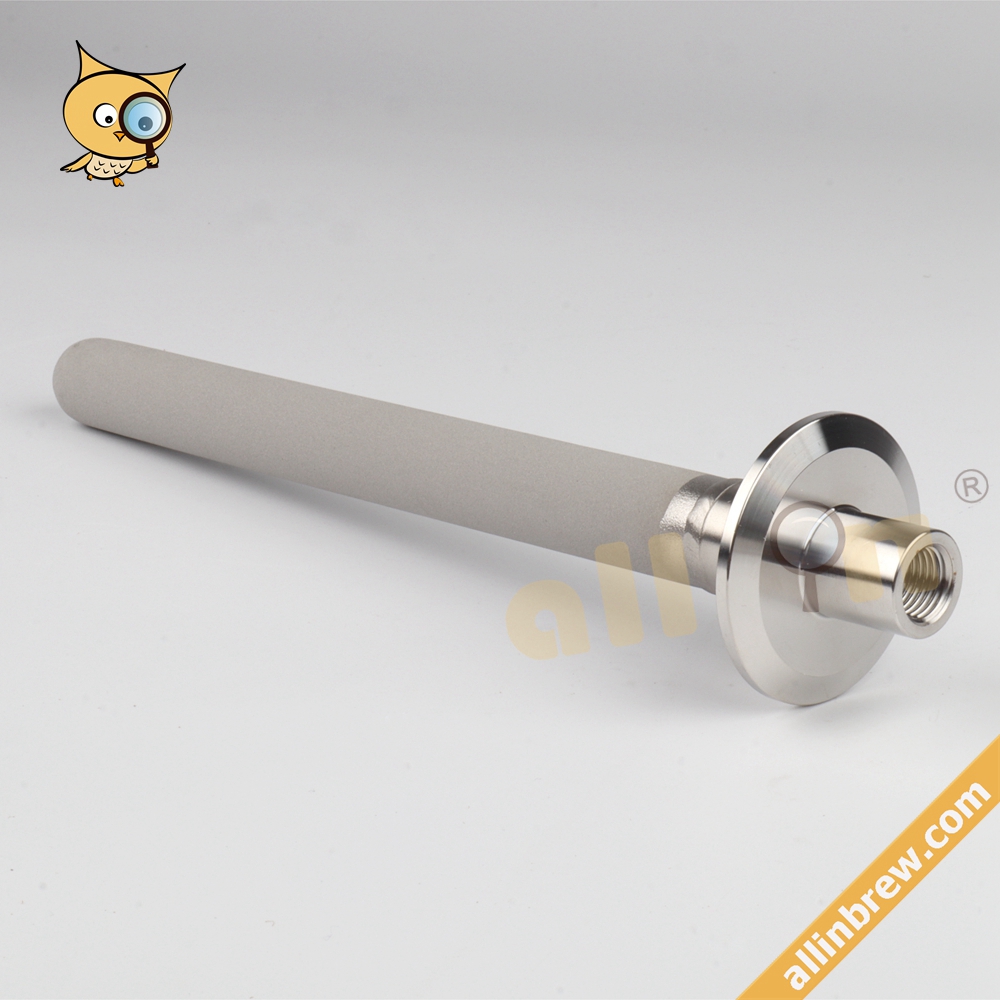

8” 316L Stainless Steel Diffusion Aeration Stone Tri-Clamp - 2 Micron
- Material: AISI 316L / SUS 316L
- Diameter of 304 Stainless Steel Part: 20mm
- Mesh Quantity per Square Inch: 7500
- Diameter of Mesh: 2 Micron
- Tri-Clamp Connection: 50.5mm
- Length: 8” (203mm)
Homebrew 316L Stainless Steel Diffusion Aeration Stone Barbed - 0.5 Micron
- Material: AISI 316L / SUS 316L
- Diameter of 304 Stainless Steel Part: 1/2”
- Mesh Quantity per Square Inch: 30000
- Diameter of Mesh: 0.5 Micron
- Barbed Connection: 1/4”
- Length: 48mm

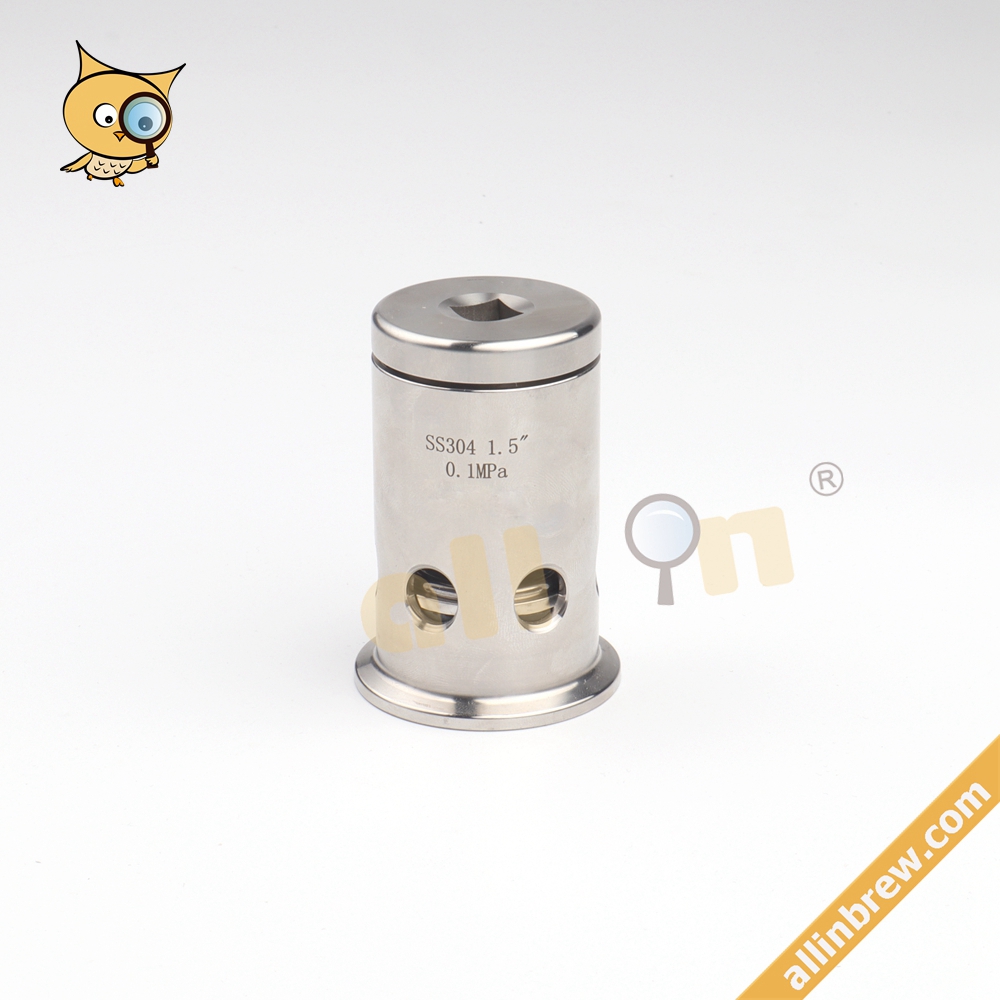

1.5” Tri Clamp 304 Stainless Steel Air Release Breathing Valve
- Material: Food Grade AISI 304 / SUS 304 / 1.4301
- Connection: 50.5mm
- Threshold Release Pressure: 0.1 MPa
- Working Temperature: -10°C to 120°C (EPDM)
- Surface Finish: Brush (Mirror Polish if Necessary)

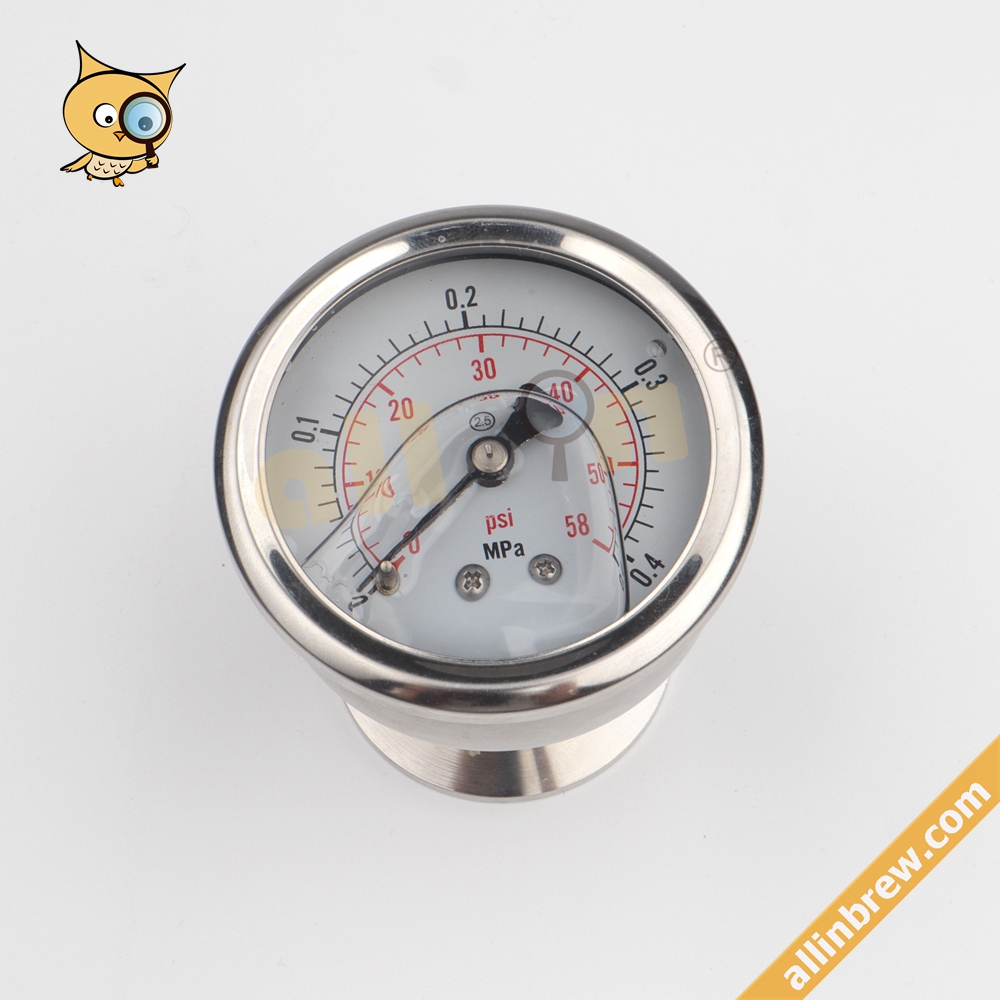

Tri Clamp Diaphragm Pressure Gauge - Horizontal Installation
- Material: Food Grade AISI 304 / SUS 304 / 1.4301
- Oil Type: Silicone Oil (Can Upgrade to Glycerol If Working Temp is less than -20°C)
- Max Pressure: 0.4MPa
- Connection: 50.5mm
- Working Temperature: -40°C to 70°C
- Surface Finish: Brush (Mirror Polish if Necessary)
Regulator Blocker Plug for Quick Connection
- Material: ABS
- Max Pressure: 120PSI
Ultra Precise Non-Thread Bar Use CO2 Regulator
- Material: Anodized Aluminum
- Thread Cover for Non-Thread CO2 Cartridge
- Normal Working Pressure: 10 - 30PSI
- Max Pressure: 30PSI
- Safety Auto-Release Exceeding 30PSI
Ultra Precise Thread Bar Use CO2 Regulator
- Material: Anodized Aluminum
- Thread: 3/8” - 24UNF
- Normal Working Pressure: 10 - 30PSI
- Max Pressure: 30PSI
- Safety Auto-Release Exceeding 30PSI
Classic Bar Use Two-Stage CO2 Regulator with Barbed Connection
Classic Bar Use Two-Stage CO2 Regulator with 12mm Quick Connection
- Material: Chrome Plated Brass
- Gas in / out Quick Connection: 12mm
- Normal Working Pressure: 10 - 30PSI
- Max Pressure: 80PSI (Updated Version)
- Safety Auto-Release Exceeding 80PSI (Updated Version)
Classic Bar Use Single-Stage CO2 Regulator
- Material: Chrome Plated Brass
- Gas in Connection: G5/8
- Gas out Connection: 8mm Barbed
- Normal Working Pressure: 10 - 30PSI
- Max in Pressure: 3500PSI
- Max out Pressure: 80PSI (Updated Version)
- Safety Auto-Release Exceeding 80PSI (Updated Version)
- Material: Anodized Aluminum
- Thread: 3/8” - 24UNF
- Normal Working Pressure: 10 - 30PSI
- Max Pressure: 60PSI / 80PSI (Updated Version)
- Safety Auto-Release Exceeding 60PSI / 80PSI (Updated Version)
- Material: Anodized Aluminum
- Thread: 3/8” - 24UNF
- Normal Working Pressure: 10 - 30PSI
- Max Pressure: 60PSI / 80PSI (Updated Version)
- Safety Auto-Release Exceeding 60PSI / 80PSI (Updated Version)
